Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: WEIDE
  • Model Number: WD-30B
  • Motor Type: AC Motor
  • Application: injection machine/other cnc machine
  • Voltage: 220V
  • Certification: CE
  • Prorection grade: IP20
  • Control Mode: Position

Packaging & Delivery

Packaging Details 1)Packed in carton with foam carpet
2)Offer label service
3)Neutral packing
Delivery Time Three to five working days after recieving payment

 220V 1.7-2.3KW  6-15nm 3-phase ac servo drive for injecting machine and other cnc machines



The price is included a set of servo motor and drive.Should you want to have the seperated price, please kindly contact us!





power source



Single phase AC220V

input  strong current

Three phase AC220V



suitable environment

 temprature

 operating between 0 to55C

 humidity

below 90% RH no dewing

 vibration

Below 0.5G(4.9m/s2) no continue running

control mode

 position control

 speed control

 inner control

regenerative braking

  in sets



characteristic

speed frequency response

500HZ

speed undulation rate



Velocity modulation ratio

1:5000

Input pulse frequency

0-500KHZ



Input control

servo EN , Alarm Clr , deviation counter reset , instruction pulse prohibit, CCW driver prohibit , CW driver prohibit,  the second electrical gear ratio

 output control

Servo ready output, Servo alarming output,lacation ready output, speed arrival output.

Position control

 input way

Two-phase A/B orthogonality pulse,pulse+direction,CCW/CWpluse

electric gear ratio

1-32767

feedback pulse

Highest 10000 pulse/revolution

acceleration/deceleration function

Preference  1-1----ms

surveillance function

 rotating speed , introduction pulse accumulate ,motor torque ,  motor current, rotor's location, introduction, pulse frequency, operating statue , input and output's terminal signal  so on

Protection function

main power source being over press, owes press, over current, overload, unusual braking,unusual Encoder and so on.

 operation

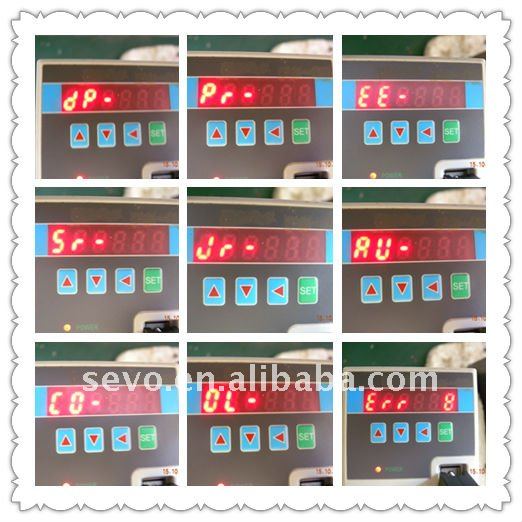

six LED digital tubes    four keypads

suitable the load inertia

less than electrical machinery inertia five times



What is a servo drive system?



A servo drive system consists of a servo drive and a servo motor. The main task of a servo drive  is the control of the motor current. In addition,  servo drives offer a broad spectrum of functionality .

While most of the electrical drive systems are operated at constant speed, a servo drive has a rather "hectic" life. Often it has to accelerate to the rated speed within a few milliseconds only to decelerate a short time later just as quick. And of course the target position is to be reached exactly with an error of a few hundredths of a millimeter.

Compared to other controlled drives servo drive systems have the advantage of high dynamics and accuracy, full stall torque, and compact motors with high power density.



Where are our servo drive systems used?

Servo drive systems are used where high dynamics (i. e. fast acceleration and deceleration) and good accuracy at reaching target positions are important. The good control behavior allows the optimal adaptation to the application (e. g. positioning without overshoot). But also the smooth run (due to sinusoidal commutation) and the possibility of exact synchronization of two or more drives open a wide field. Because of their wide speed range servo drives can be used in a huge number of applications.

Servo drives run in large, highly automated installations with several dozens of axes as well as in machines with only a few axes which perhaps operate independently.





 We can offer neutral packing
