60ST-M01330 400W 220V 3000rpm 1.27nm ac electric motor for printing machine

FOB Reference Price:Get Latest Price
US $218-225 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
WEIDE
Model Number:
60ST-M01330
Type:
Servo Motor
Frequency:
50/60HZ
Output Power:
400W
Protect Feature:
Totally Enclosed
Phase:
Three-phase
Certification:
CCC, CE
AC Voltage:
208-230 / 240 V
Place of Origin:
Guangdong, China (Mainland)
Efficiency:
IE 3
Rated speed:
3000 rpm
Rated voltage:
220V
Temperature:
-20 to 50C
Humidity:
Below 90% RH no dewing
Application:
printing machine/other machines
Protection class:
IP65
Rated Torque:
1.27N.m
Rated Power:
400W
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1)Offer label service
2)Packed in carton with foam carpet
3)Neutral packing
Port
Guangzhou
Lead Time :
3-7 working days after recieve payment

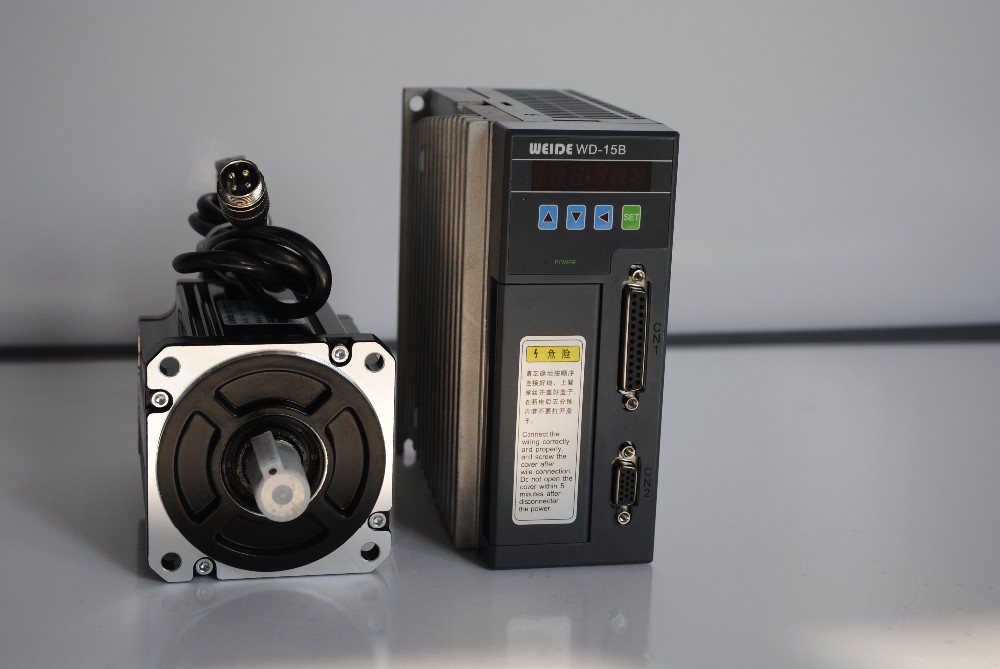

60ST-M15025 400w 220V 3000rpm 1.27nm ac electric motor for printing machine or other cnc system



The price is included a set of  servo motor and drive.Should you want to have the seperated price, please kindly

contact us!



Selling Points



High speed and torque

Highly stable

Low noise, low vibration

High precision

Beautiful appearance, easy installation

High quality



motor model

60ST-M00630

60ST-M01330

Rated power    (W)

200

400

Rated voltage     (V)

220

220

Rated current   (A)

1.2

2.8

Rated speed    (rpm)

3000

3000

Rated torque  (N.m)

0.637

1.27

Peak torque   (N.m)

1.91

3.9

Voltage constant (V/1000r/min)

30.9

29.6

Torque coefficient     (N.m/A)

0.53

0.45

Rotor inertia   (Kg.m2)

0.175×10-4

0.29×10-3

Phase Resistance(Ω)

6.18

2.35

Phase Inductance (mH)

29.3

14.5

Machanical time-constant  (ms)

      4.746.17

Weight(Kg)

1.16

        1.63
