High quality WD20B 2500ppr incremental ac servo motor driver with CE approved

FOB Reference Price:Get Latest Price
US $250-329 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
WD- 20B
Motor Type:
AC Motor
Servo motor drive
Control mode:
Speed/Position/Internal speed
Below 90% RH no dewing
Response Frequency:
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1)cartons for packing
2)based on your requirement.
3)offer label service
Lead Time :
7 working days after recieve payment


High quality AC WD20 servo driver controller with CE approved


The Price is is included a set of servo drive and motor. Should you want to have seperated price,please kindly contact us!


Full digital control type servo driver


Can select controlled mode respectively  ( location,speed)


Multiplex SV can change directly by panel


Collocation motor (200w-3800w)


Equipped with inner control function



power source


Single phase AC220V

input  strong current

Three phase AC220V


suitable environment


 operating between 0 to55C


below 90% RH no dewing


Below 0.5G(4.9m/s2) no continue running

control mode

 position control

 speed control

 inner control

regenerative braking

  in sets



speed frequency response


speed undulation rate


Velocity modulation ratio


Input pulse frequency



Input control

servo EN , Alarm Clr , deviation counter reset , instruction pulse prohibit, CCW driver prohibit , CW driver prohibit,  the second electrical gear ratio

 output control

Servo ready output, Servo alarming output,lacation ready output, speed arrival output.

Position control

 input way

Two-phase A/B orthogonality pulse,pulse+direction,CCW/CWpluse

electric gear ratio


feedback pulse

Highest 10000 pulse/revolution

acceleration/deceleration function

Preference  1-1----ms

surveillance function

 rotating speed , introduction pulse accumulate ,motor torque ,  motor current, rotor's location, introduction, pulse frequency, operating statue , input and output's terminal signal  so on

Protection function

main power source being over press, owes press, over current, overload, unusual braking,unusual Encoder and so on.


six LED digital tubes    four keypads

suitable the load inertia

less than electrical machinery inertia five times




 How to choose the appropriate servo drive?


The servo drive has to supply the motor with the required current (rated current at continuous operation, peak current) and match the terminal voltage of the motor (125 V, 320 V, or 560 V). Also the intended purpose is important for the choice of the right drive


Is the servo drive going to be used in velocity mode in a multi-axis application with a higher-level controller (e. g. CNC)? Then an analog servo drive may be sufficient.


Or should the drive be equipped with more functionality (e. g. for positioning control or axis synchronization) or a fieldbus (e. g. Interbus, CANopen, or Profibus-DP) for communication with the higher-level controller? In this case a digital servo drive has to be used.

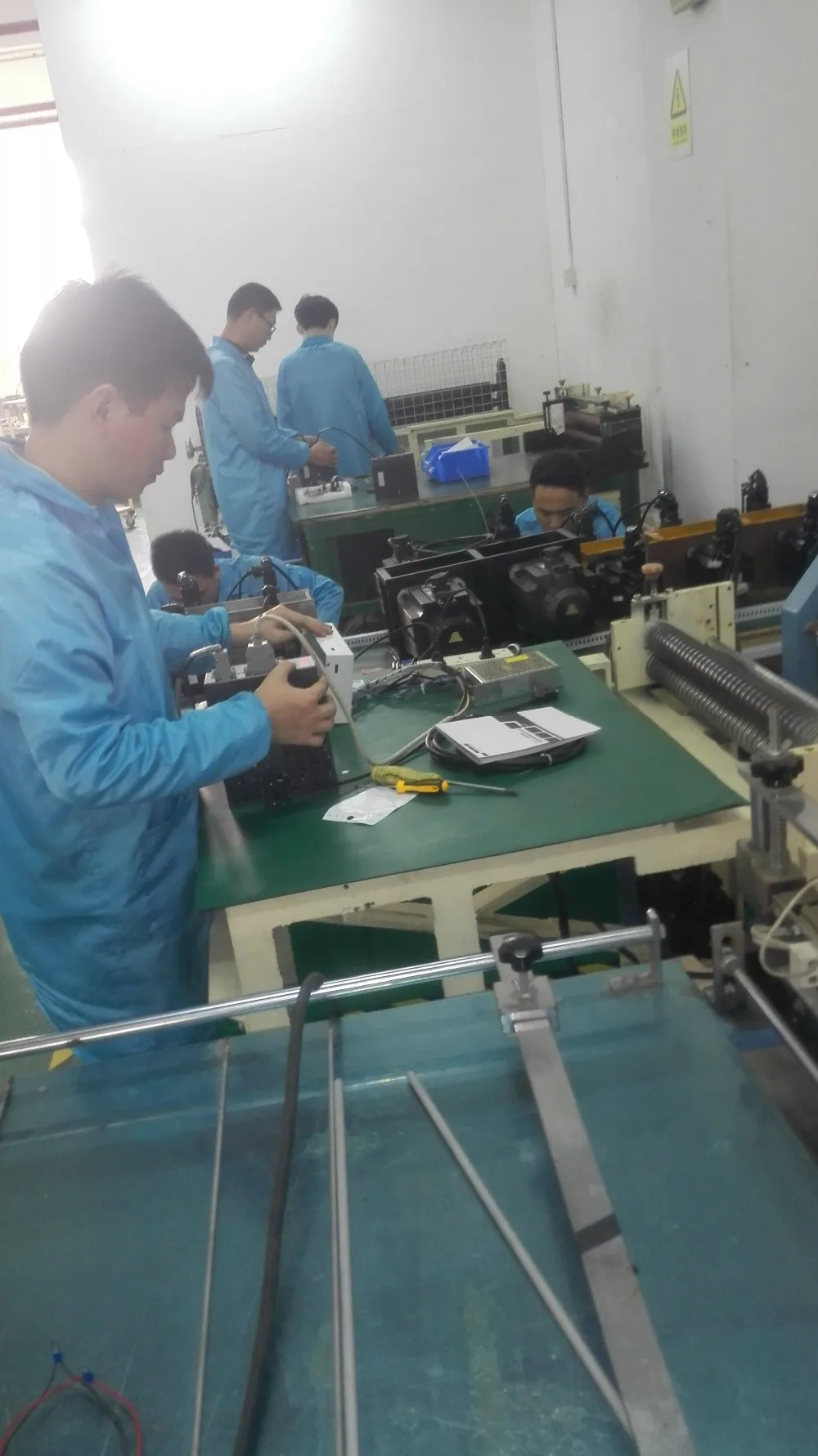

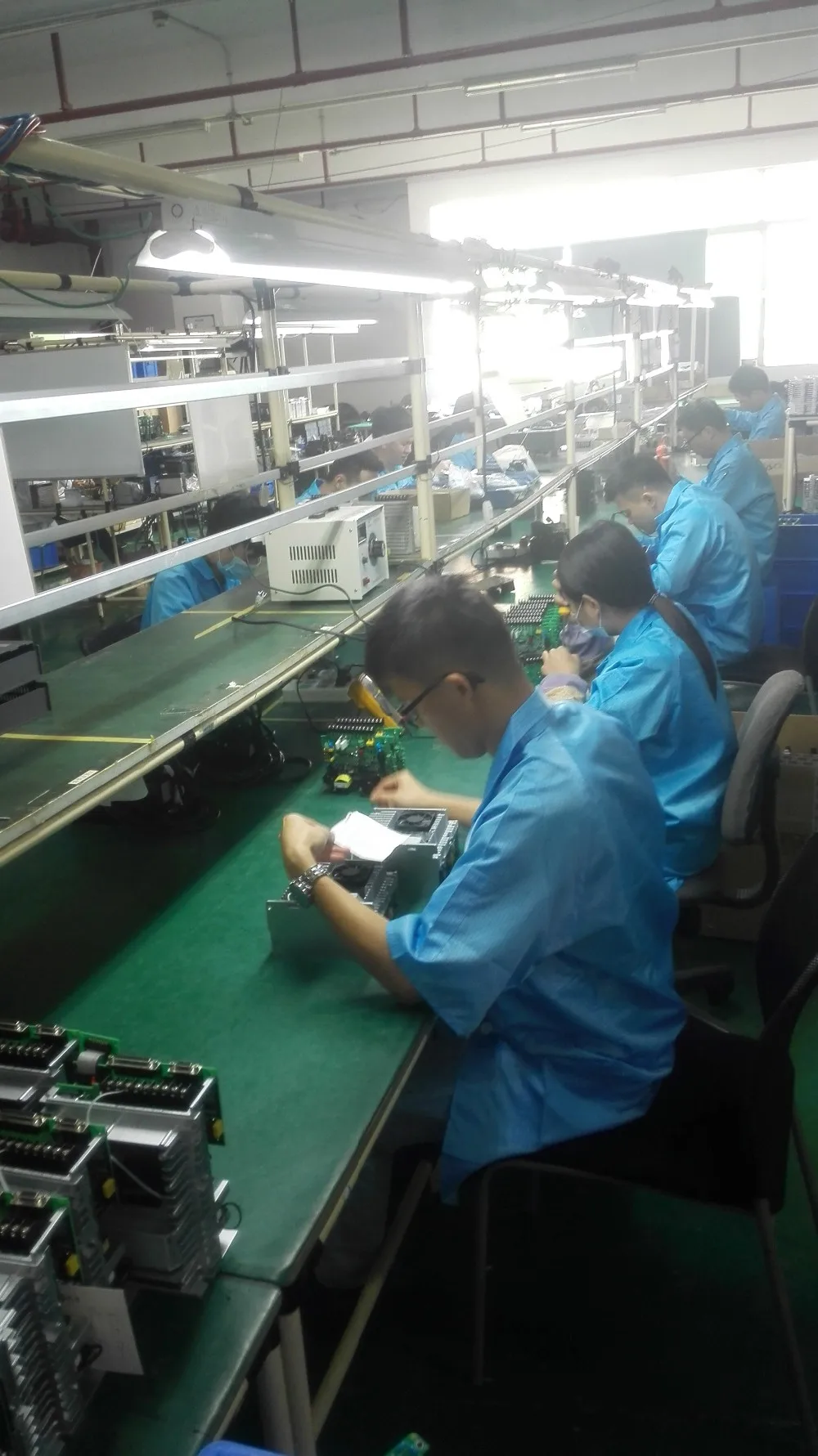

Assembly Line

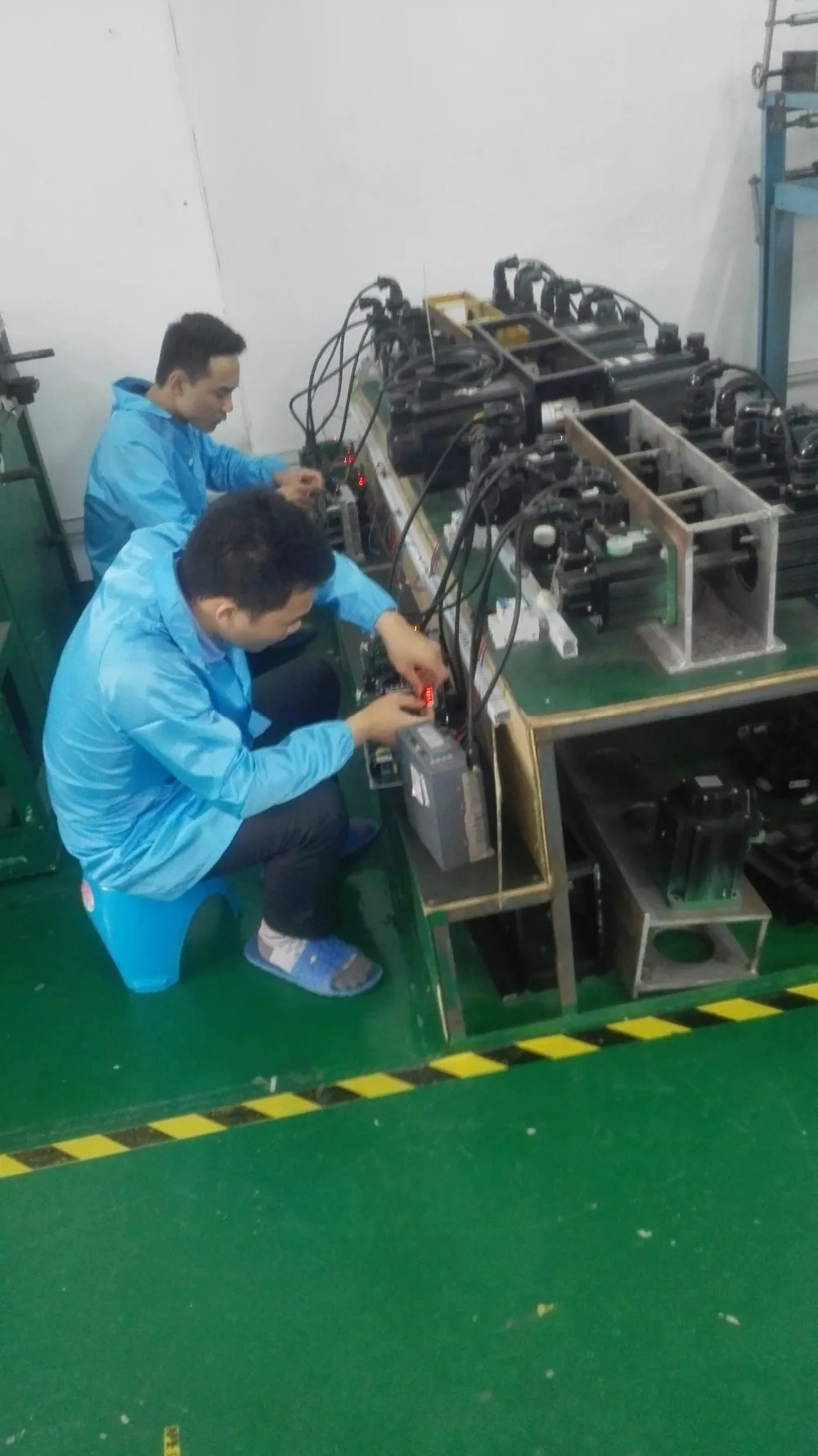

Application Test



Packaging Detail
